E-Bike conversion Kit BAFANG G340 68mm BBS02B 500W 36V C961

delivery time: 1-2 Tage
Product.Nr.: BBS02-500-36
weight: 7 kg
Manufacturer: BAFANG

EUR 465,00
incl. 19 % VATexcl. shipping costs

latest version MM.G340 = replacement for earlier BBS version
BBS02B motor with new controller CR R209.750 with improved water protection
The bike conversion kit with mid drive motor is the best choice .
The advantage is that the weight of the motor is low and centralized in the frame which means a better balanced feel than a heavy hub in the rear wheel.
With a bit technical knowledge the conversion to e-bike is easy.
The original bottom bracket will be replaced by the motor.
Original BAFANG (former 8FUN) quality product
With integrated controller

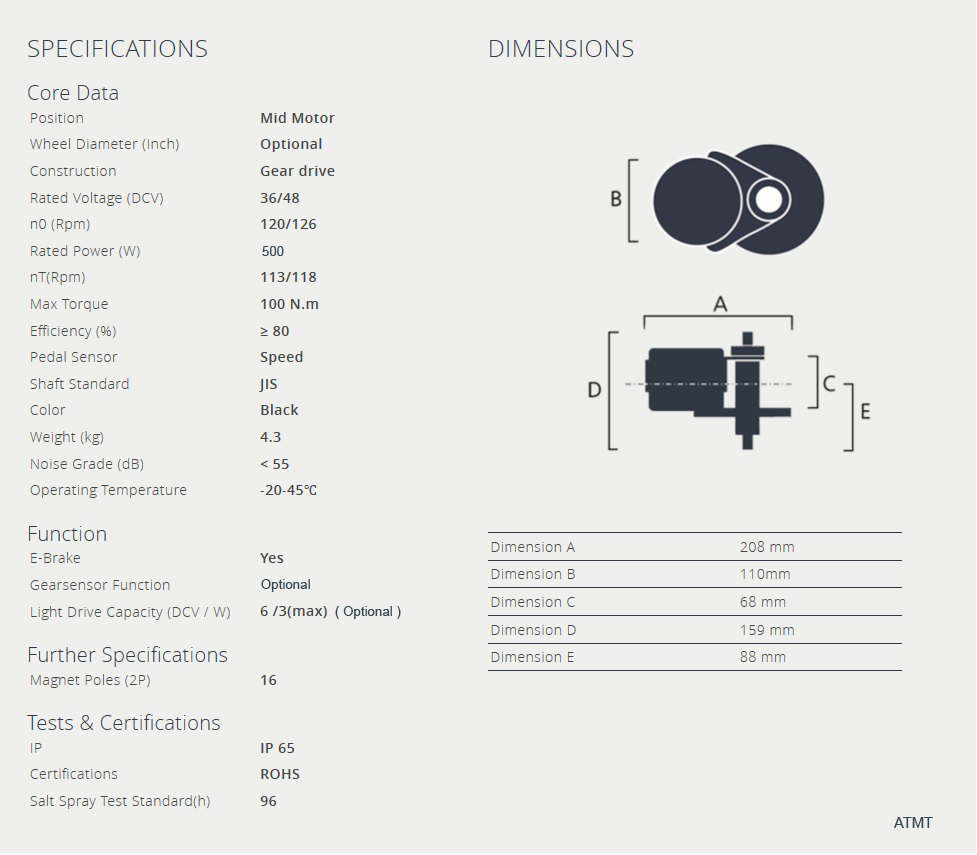

Description: BAFANG G340 68mm BBS02B 500W 36V C961
Power: 500 Watt
Torque: 100Nm
Bottom bracket size: 68mm
waterproof: IP65

BAFANG LCD display with waterproof cable, 9 level
Chainwheel HD 46T = standard - HD-44T , HD-48T, HD-52T as Option
V-brake / mechanical disc brake sensor LH + RH included in kit .
hydraulic brake senor available as option
complete conversion kit , open system , compatible with all 36V bike batteries
( battery not included ! )
